Included Accessories
Strings, Pick-tin, Bulb strap
Saddle Height Wrench
Yes
Sale
Impossible de charger la disponibilité du service de retrait
Misha Mansoor is acclaimed for his masterful guitar work in fashioning the progressive metal of Periphery, and Jackson is proud to have collaborated so closely with the esteemed Djent forefather and speed demon on the USA Signature Misha Mansoor Juggernaut HT7, a model sure to impress the most discerning guitarists.

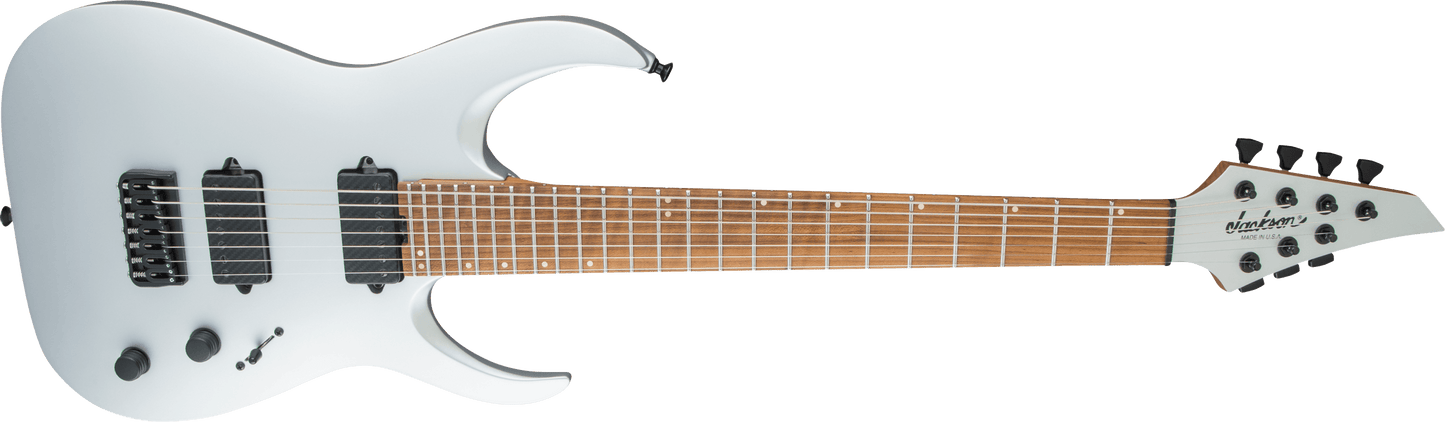

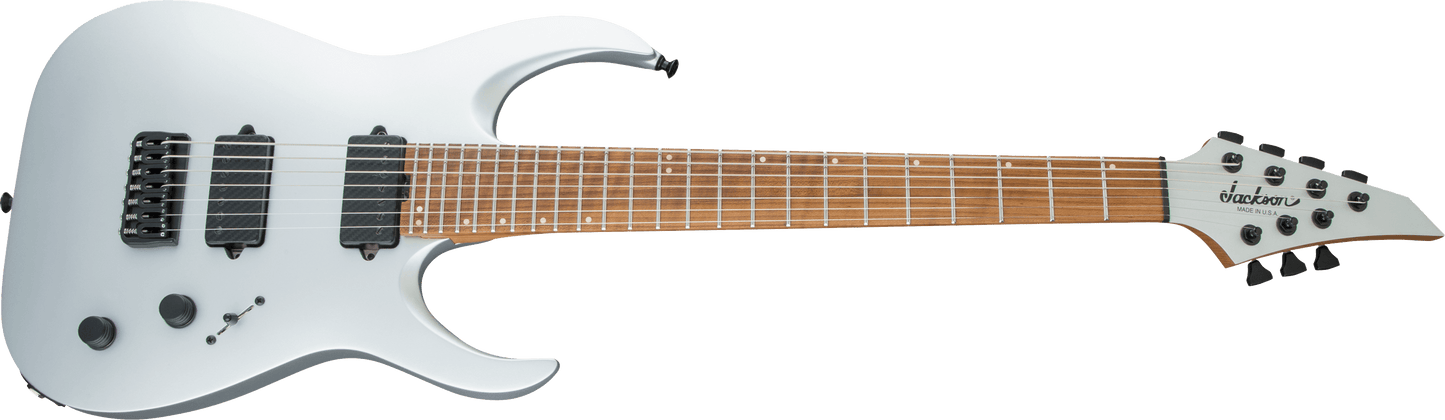

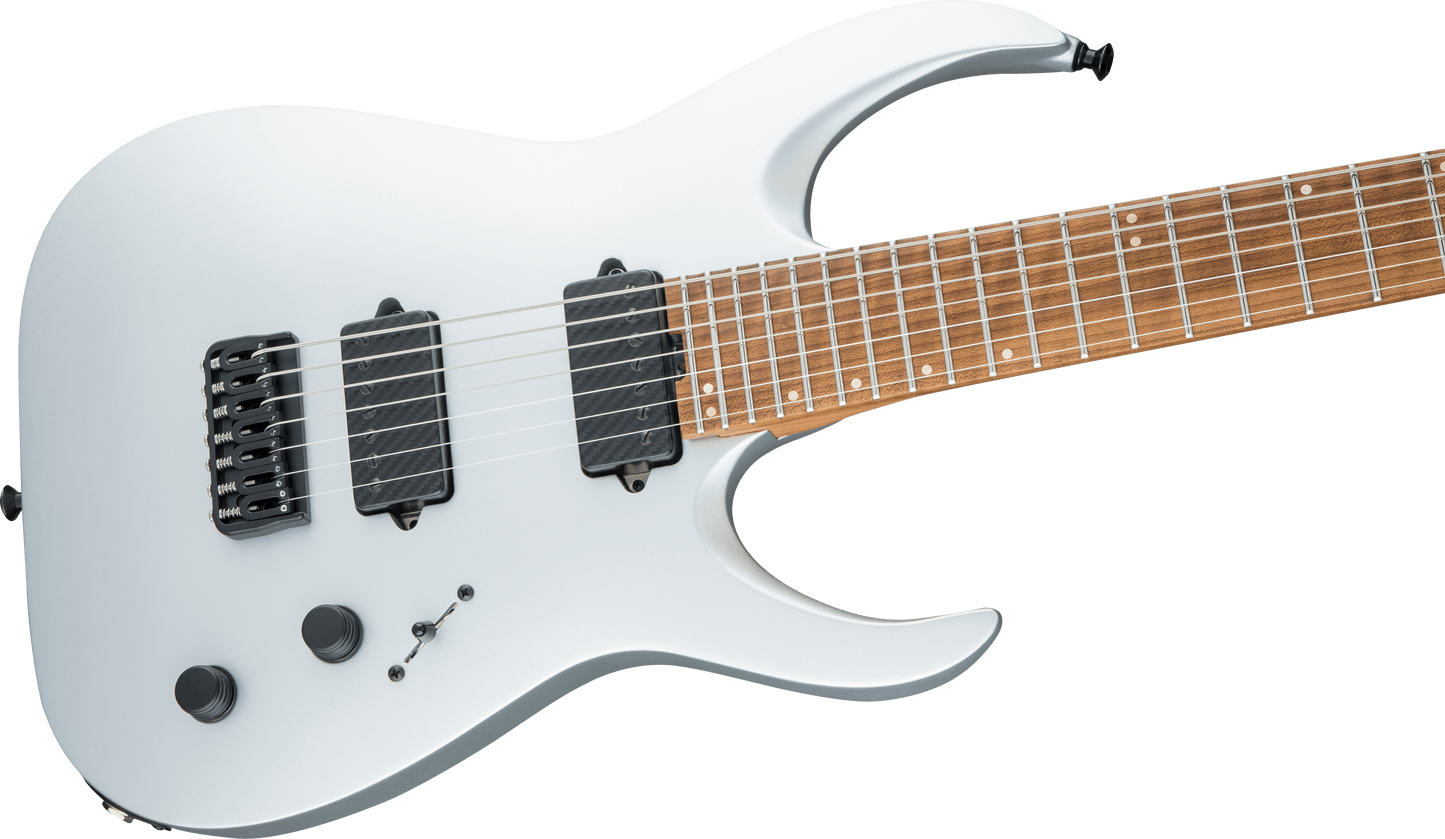

This unique 7-string instrument is sculpted with a distinctive Jackson body shape inspired by the Dinky,™ with sleekly scalloped horns and a comfortably contoured neck heel. A caramelized basswood body is paired with a graphite-reinforced bolt-on quartersawn maple neck, shaped with Mansoor's own custom profile with a hand-rubbed urethane gel back finish. The 20"-radius caramelized flame maple fingerboard features comfortably rolled edges, 24 jumbo stainless steel frets and offset maple dot inlays. A heel-mount truss rod adjustment wheel allows for quick and easy neck tweaks, even between songs in a set.

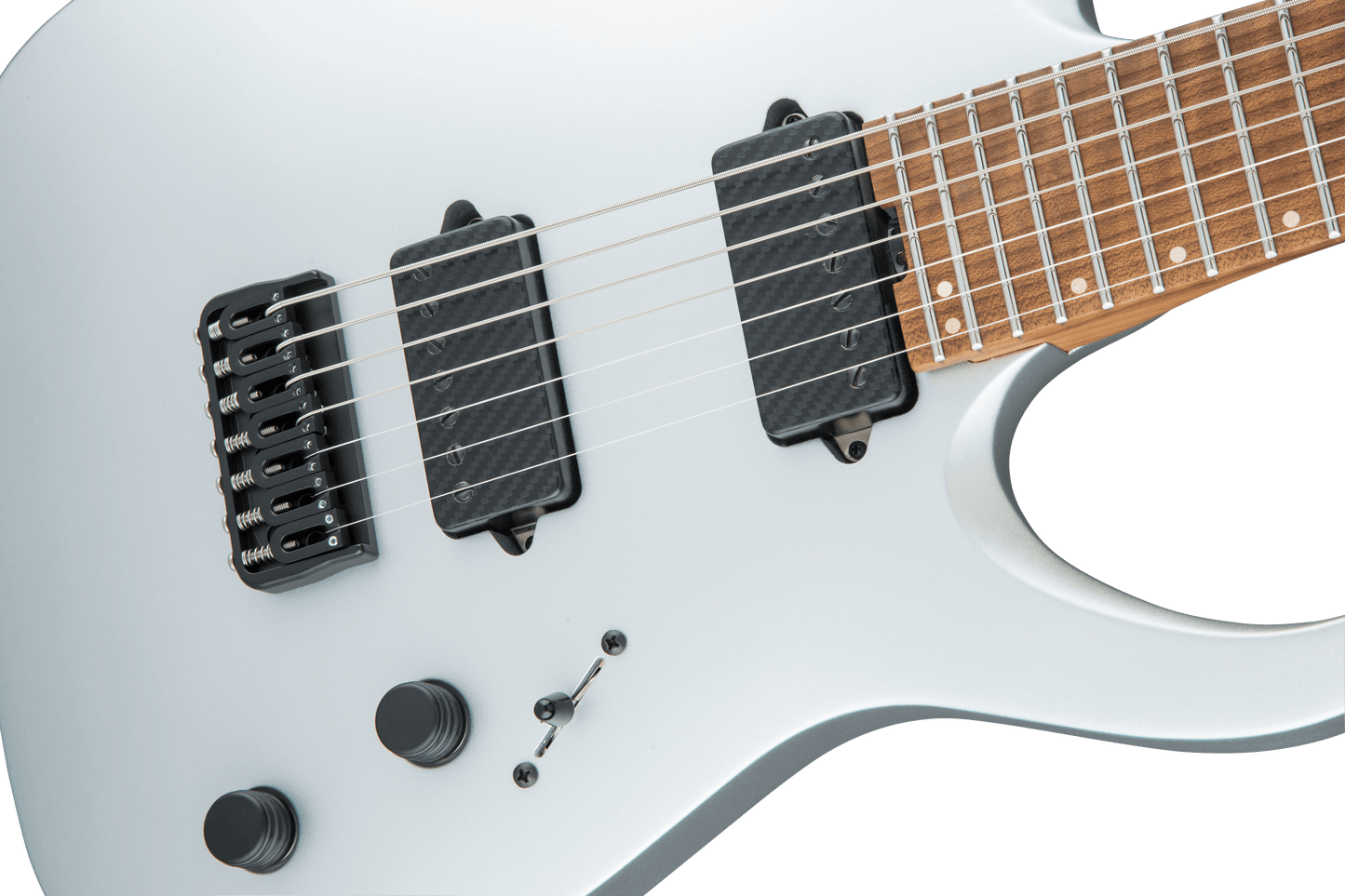

The guitar's tonally versatile sound comes from Mansoor's dual Bare Knuckle Ragnarok humbucking pickups with laser etched carbon fiber covers, five-way switching, single volume control knob and a push-pull (on/off) tone knob. Other premium features include a matching Jackson 4x3 AT1 headstock with Hipshot® open-gear locking tuners and a fixed Hipshot hardtail bridge, Dunlop® dual-locking strap buttons and more.
Designed to own the stage, the Juggernaut is available in three stunning finishes - Satin Daphne Blue, Satin Red or Satin Silver with black hardware. This signature instrument also comes with a hardshell case, a set of D'Addario® strings, pick-tin and Bulb strap.
One of Mansoor's signature pickups, the Bare Knuckle Ragnarok is a hot ceramic pickup built to have a smooth top end and incredible clarity, while also being devastatingly tight and aggressive with a chunky, fat sound.
Hipshot fixed bridges provide the ultimate in comfort and stability. Stainless steel saddles brighten tone and maximize sustain. The side walls lock the saddles in to place no matter how hard the attack.
Strings, Pick-tin, Bulb strap
Yes
Caramelized Basswood
Satin
Caramelized Basswood
Juggernaut
Bare Knuckle Ragnarok
Volume, Tone (with Push/Pull Select Feature)
Bare Knuckle Ragnarok
HH
5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Two Inside Coils, Position 3. Both Full Humbucking Pickups, Position 4. Two Outer Coils, Position 5. Full Neck Pickup
Satin Silver
Right-Hand
USA Signature Misha Mansoor Juggernaut HT7, Caramelized Flame Maple Fingerboard, Satin Silver
Artist Signature
Hipshot® 7 - Fixed .175
Hipshot® O-ring
Black
4-Bolt (recessed screws)
None
Covered Carbon Fiber (Laser Etched)
Dunlop® Dual-Locking
Horizon Devices Strings - Progressive Tension Heavy 7
Black
Hipshot® Open-Gear Locking
Jumbo Stainless
26.5" (673 mm)
9207.90.0040
Caramelized Flame Maple
20" (508 mm)

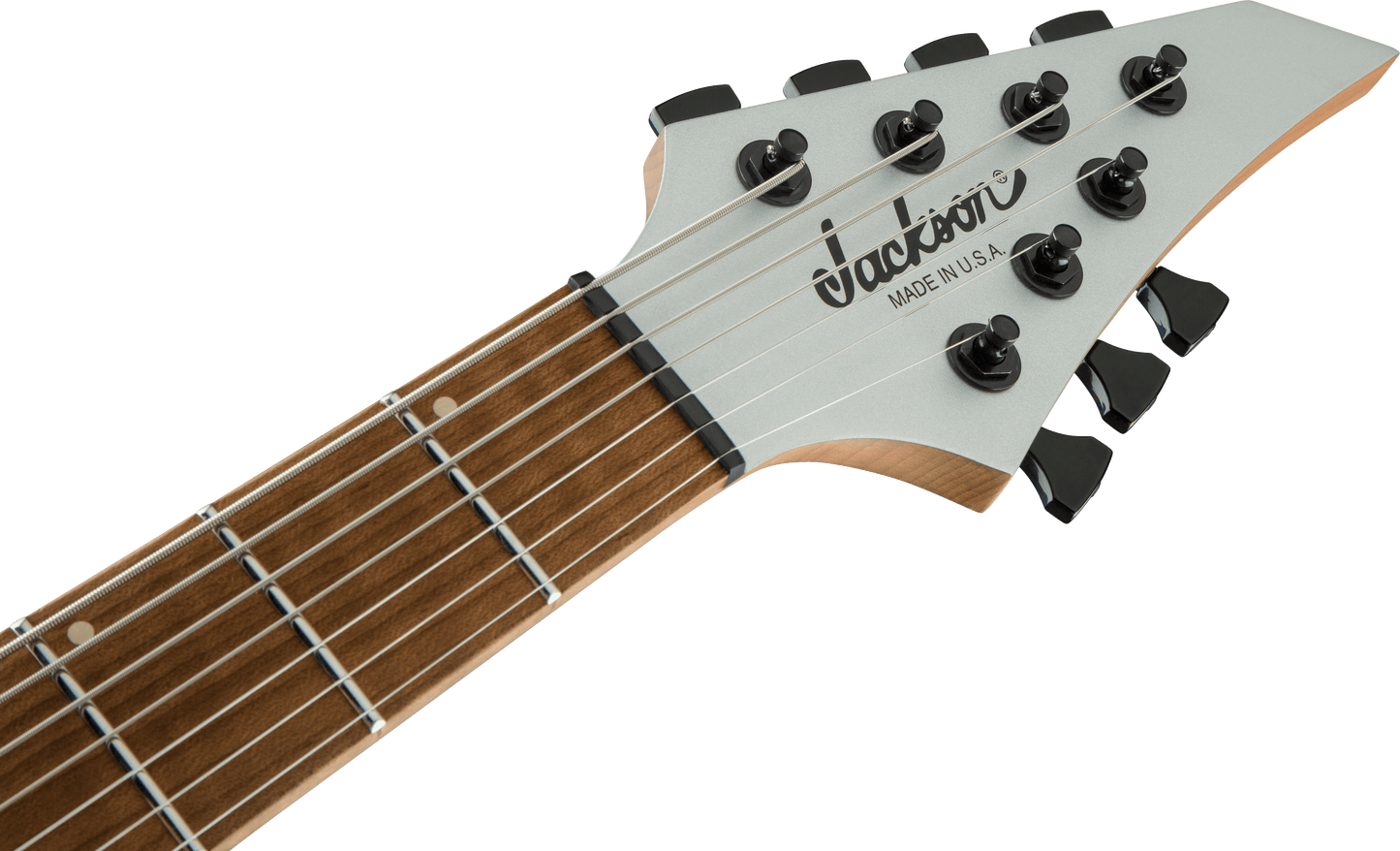

Jackson® AT-1 4x3 (4 Over/3 Under)
None
Bolt-On with Graphite Reinforcement and Scarf Joint
Hand-Rubbed Urethane
Caramelized Quartersawn Maple
24
Graph Tech TUSQ XL
1.75" (44.45 mm)
Offset Maple Dot
Graph Tech TUSQ XL
Dual-Action
Heel-Mount Truss Rod Adjustment Wheel
Strings, Pick-tin, Bulb strap
Yes
Caramelized Basswood
Satin
Caramelized Basswood
Juggernaut
Bare Knuckle Ragnarok
Volume, Tone (with Push/Pull Select Feature)
Bare Knuckle Ragnarok
HH
5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Two Inside Coils, Position 3. Both Full Humbucking Pickups, Position 4. Two Outer Coils, Position 5. Full Neck Pickup
Satin Daphne Blue
Right-Hand
USA Signature Misha Mansoor Juggernaut HT7, Caramelized Flame Maple Fingerboard, Satin Daphne Blue
Artist Signature
Hipshot® 7 - Fixed .175
Hipshot® O-ring
Black
4-Bolt (recessed screws)
None
Covered Carbon Fiber (Laser Etched)
Dunlop® Dual-Locking
Horizon Devices Strings - Progressive Tension Heavy 7
Black
Hipshot® Open-Gear Locking
Jumbo Stainless
26.5" (673 mm)
9207.90.0040
Caramelized Flame Maple
20" (508 mm)
Jackson® AT-1 4x3 (4 Over/3 Under)
None
Bolt-On with Graphite Reinforcement and Scarf Joint
Hand-Rubbed Urethane
Caramelized Quartersawn Maple
24
Graph Tech TUSQ XL
1.75" (44.45 mm)
Offset Maple Dot
Graph Tech TUSQ XL
Dual-Action
Heel-Mount Truss Rod Adjustment Wheel
Strings, Pick-tin, Bulb strap
Yes
Caramelized Basswood
Satin
Caramelized Basswood
Juggernaut
Bare Knuckle Ragnarok
Volume, Tone (with Push/Pull Select Feature)
Bare Knuckle Ragnarok
HH
5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Two Inside Coils, Position 3. Both Full Humbucking Pickups, Position 4. Two Outer Coils, Position 5. Full Neck Pickup
Satin Red
Right-Hand
USA Signature Misha Mansoor Juggernaut HT7, Caramelized Flame Maple Fingerboard, Satin Red
Artist Signature
Hipshot® 7 - Fixed .175
Hipshot® O-ring
Black
4-Bolt (recessed screws)
None
Covered Carbon Fiber (Laser Etched)
Dunlop® Dual-Locking
Horizon Devices Strings - Progressive Tension Heavy 7
Black
Hipshot® Open-Gear Locking
Jumbo Stainless
26.5" (673 mm)
9207.90.0040
Caramelized Flame Maple
20" (508 mm)
Jackson® AT-1 4x3 (4 Over/3 Under)
None
Bolt-On with Graphite Reinforcement and Scarf Joint
Hand-Rubbed Urethane
Caramelized Quartersawn Maple
24
Graph Tech TUSQ XL
1.75" (44.45 mm)
Offset Maple Dot
Graph Tech TUSQ XL
Dual-Action
Heel-Mount Truss Rod Adjustment Wheel
